1 HP 3.5 inch Deep Well Submersible Pump 220V 8GPM 328ft Lift 33ft Cord 1 inch NPT Discharge
Description
- Technical Specifications: 3.5" OD,1HP, 220V-240V, 60Hz,1” NPT discharge. Fits in a 3.5" casing or above. Full Stailess Steel.
- Economy & Effective: 8GPM max & 328ft head;33ft lengthy electric cord-allows for easy connection; extra coppper check vavle;built-in thermal protection
- Outstanding Performance: Stainless steel body & permanent magnet motors & thermoplastic impellers -industrial grade heavy duty - guarantees high durability and long-lasting use.

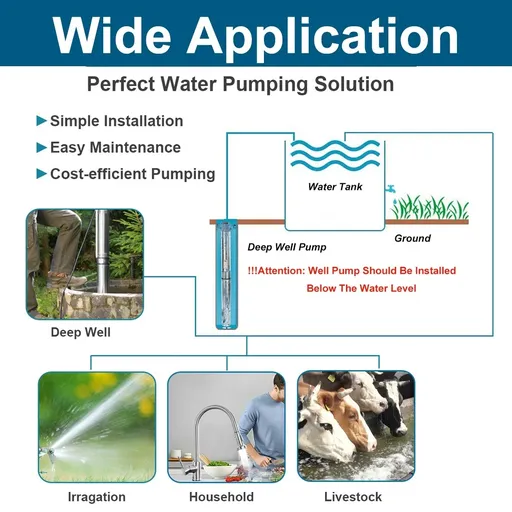

- Wide Application: Perfectly convenient for use at home and for factory usage;can be implemented in different types of wells-ash pipe wells, steel pipe wells, or soil wells;Can be used for extracting water from reservoirs, canals, rivers, open water tanks and other water lifting works.
- Built-in Controlbox & Check Valve:This item is with a built-in control box, it is for thermal protection, short-cut protection and overload protection.

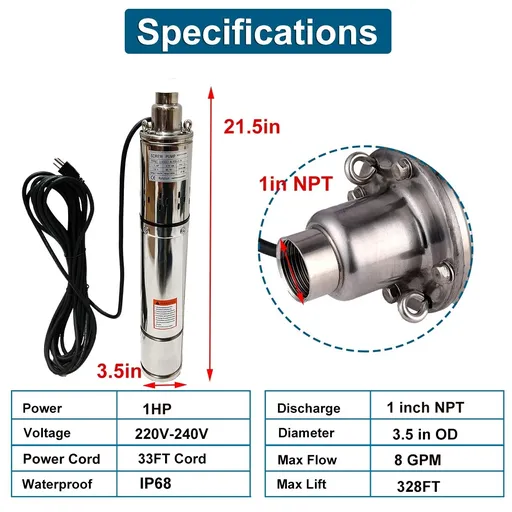

iMeshbean Well Pump Specification:
Motor: 1HP/0.75KW
Voltage: 220V-240V/60Hz

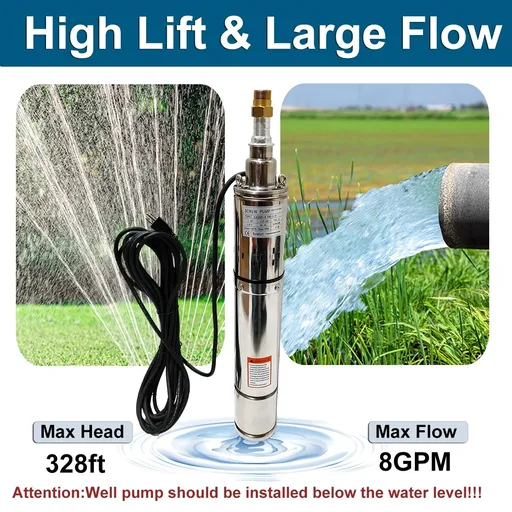

Max Flow: 8GPM
Max Head: 328FT
Waterproof:IP68
Power Cable: 33 FT
Pump Diameter: 3.5 in OD
Phase: Single
Rev: 3420RPM
Internal Thread Diameter: 1"
Material: 304 Stainless Steel
Water temperature: 32 ~113℉
Maximun Sand Content:0.25%
Pump Type:Screw Pump
Protection Grade:IP58
Water PH:6.5-8.5

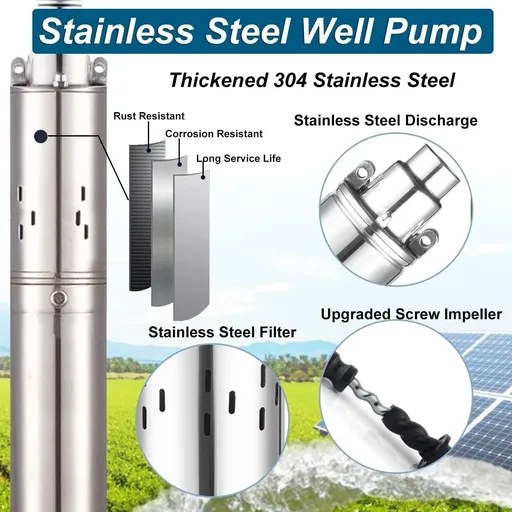

304 Stainless Steel
-
This stainless steel deep well pump features a built-in check valve and stainless steel material. As a result, our pump is highly corrosion-proof and rust-proof.

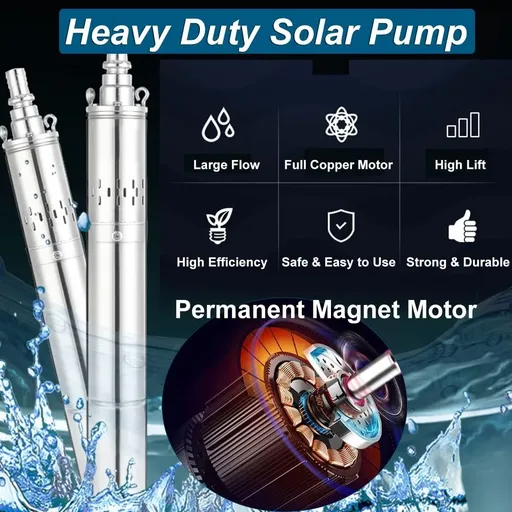

Powerful Motor
- Pure copper wire click, strong power, safe and durable.
- Copper wire coil, high Efficiency, better heat dissipation.

High Precision Rotor
- Stable
- Energy-saving
- Long-life
- High Efficiency

Upgraded Screw
- High Pressure-resistant
- Prolong Pump Life

33FT Cord
- 33 FT Power Cord
- 2 wire pump with 3-Wire (2 wires + ground wire)

1 inch NPT
- Stainless Steel with electrophoretic paint.
- Easy to install and connect with the water pipe.
- 1x Deep Well Pump
- 1x 33 FT Power cord
- 1x English Manual
