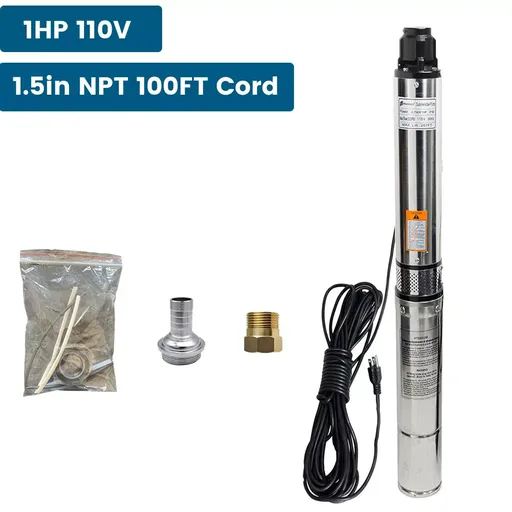

1 HP 4 inch Deep Well Submersible Pump 110V 33GPM 276ft Lift 100ft Cord Stainless Steel
Description
- Technical Specifications: 4"，1HP, 115V, 10.2 Amps , 60 Hz. 8 Impellers；100ft Power Cord; Fits in a 4" casing.
- Economy & Effective: 33GPM max & 207ft head；100′ lengthy electric cord -allows for easy connection，; built-in controlbox;built-in check vavle;built-in thermal protection
- Outstanding Performance: Stainless steel body& thermoplastic impellers -industrial grade heavy duty - guarantees high durability and long-lasting use.
- Wide Application: Perfectly convenient for use at home and for factory usage;can be implemented in different types of wells-ash pipe wells, steel pipe wells, or soil wells；Can be used for extracting water from reservoirs, canals, rivers, open water tanks and other water lifting works.
- Built-in Control box & Check Valve: This item is with a built-in control box, it is for thermal protection, short-cut protection and overload protection.
iMeshbean Well Pump Specification:
Motor: 1HP / 0.75KW
Voltage: 110V / 60Hz
Work Current: 10.3 AMP
Outlet Diameter :1-1/2" NPT Discharge
Diameter: 4"
Max flow: 7.5 m³/h, 33GPM
Max Head: 207 FT
Number of Impeller: 8
Protection Grade: IP68
Pump Body Material: Stainless Steel - High strength and corrosion resistance
Water Temperature: (32 ~113 ℉ )
Water Ph: 6.5~ 8.5
Maximum Sand Content: 0.25%
304 Stainless Steel
-
This stainless steel deep well pump features a built-in check valve and stainless steel material. As a result, our pump is highly corrosion-proof and rust-proof.
Powerful Motor
- Pure copper wire click, strong power, safe and durable.
- Copper wire coil, high Efficiency, better heat dissipation.
High Precision Rotor
- Stable
- Energy-saving
- Long-life
- High Efficiency
High Lift & Large Flow Rate
- Upgraded Impeller
- High Pressure-resistant
100FT Cord
- 100 FT Power Cord
- 2 wire pump with 3-Wire (2 wires + ground wire)
Coupling & Outlet
- Cast iron with electrophoretic paint.
- Easy to install and connect with the water pipe.
iMeshbean Deep Well Pump Package including:
- 1 x Deep Well Pump
- 1 x100' long electric cord w/US plug
- 1x 1-1/2in to 1in Outlet
- 1 x Copper check valve
- 1 x Manual
Well Pump Installation Recommend
- This pump has a built in check valve. However installing additional check valve is recommended.
- Built-in Check Valve: Only used to avoid damage due to back flow of water and causing backspin of the impellers.
- Built-in Control Box: Only for thermal protection, short-circuit protection and overload protection, DO NOT have power on-off function.
