1/8HP 3 Speed Circulating Pump Use w/Outdoor Furnaces,Hot water heat,Solar,115V

Sale https://www.imeshbean.com/web/image/product.template/131/image_1920?unique=abc5ef7

68.99 68.99 USD 98.56


30% Off

Not Available For Sale


    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS 2-5 Days Delivery Time
    Product Image

    1/8HP 3 Speed Circulating Pump Use w/Outdoor Furnaces,Hot water heat,Solar,115V

    98.56 68.99
    30% Off


    • Description: 115V Water Circulator Pump
    • Model: RS20/6-F-115V
    • Brand: iMeshbean
    • Voltage: 110-120V
    • Hertz: 60Hz
    • HP: 1/8hp
    • Speed 1: 8.4GPM (32L/min) / 9.8FT (3M)
    • Speed 2: 11.3GPM (43L/min) / 16.4FT (5M)
    • Speed 3: 14.5GPM (55L/min) /19.6FT (6M)
    • 3 Speed: (8m-65L/min)(7M-50L/min)(5.6m-35L/min)
    • Max Flow: 14.5/11.3/8.4GPM (55/43/32L/min)
    • Max Head: 19.6/16.4/9.8FT (6/5/3M)
    • Maximum Working Pressure: 145 PSI
    • Liquid temperature range: 0 - 100℃(0-212℉)
    • Phase: Single
    • Noise level: ≤60dB
    • Mounting Positions: Pump shaft in the horizontal plane
    • Materials: Copper, Cast iron, PVC Plastic
    • Connection Size: 1 in
    • Ambient temperature: not higher than 40℃(104℉)
    • Motor: Protection class: IP44; Insulation class: F
    • Power cord: 1m/3.3ft w/US Plug
    • Connection Type: Flanged

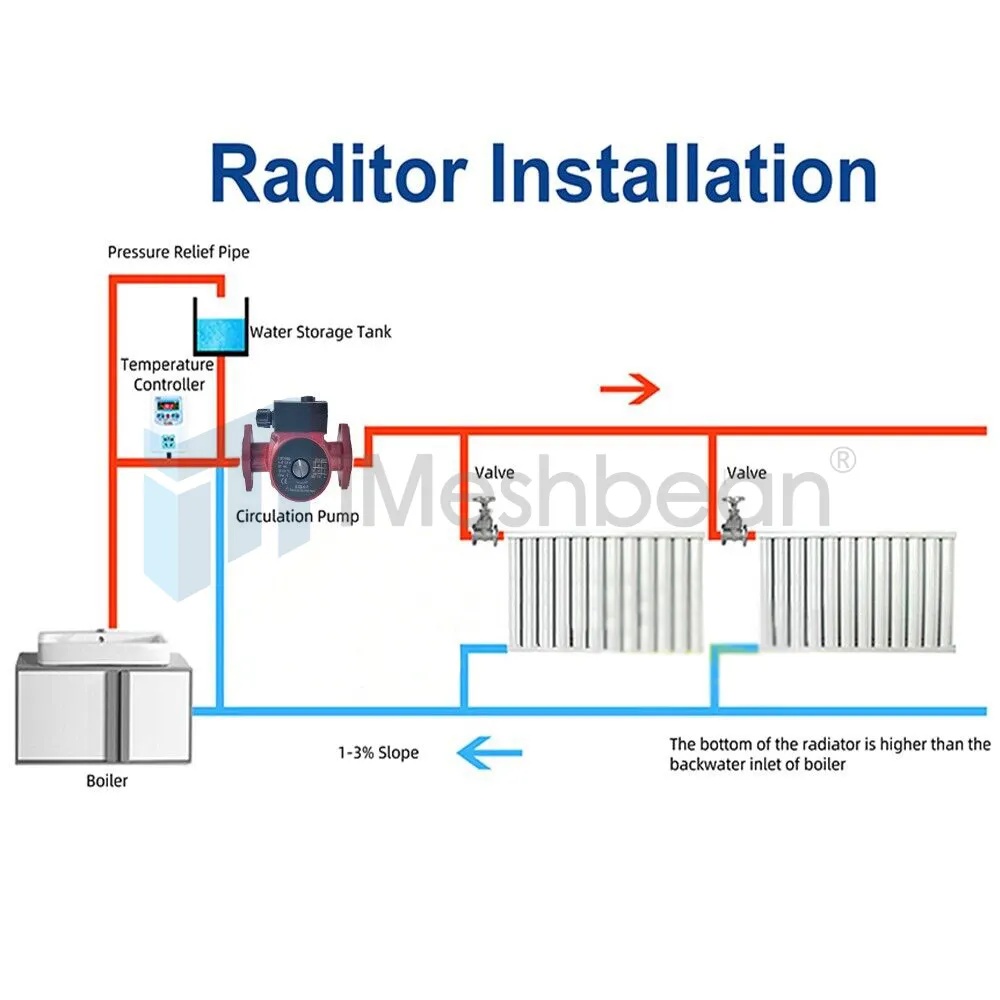

    • Wide application: it is designed especially for heating systems and it can be used to supply water and add pressure for mansions in the city, villas in suburbs, and houses, to match with industrial equipment, to supply water in the cycle for cooling air-condition, boiler and solar energy, supply hot water and keep warm in the cycle, etc.
    • Features: The pump is treated with special anti-rust treatment, high-temperature resistance, corrosion resistance, anti-fraying, long life, and no rust. No leakage, low noise, environmental protection, beautiful appearance, convenient installation, running responsibly, and so on.
    • Material: The pump is equipped with a cast iron head, aluminum housing, PP impeller, ceramic shaft, ceramic bearings
    • Forbidden Fluid: Dangerous liquid which contains solid particles, fiber, or oil stains is not allowed. The explosive, mucous, or corrosive liquid is forbidden. Fluid temperature range: 0-100℃(0-212℉);Ambient Temperature: Permissible up to 40℃(104℉)

    Package Included:

    • 1 x 3 Speed Circulating Pump
    • 2 x Gaskets (Orings)
    • 4 x Bolts
    • 4 x Nuts
    • 1 x Manual
