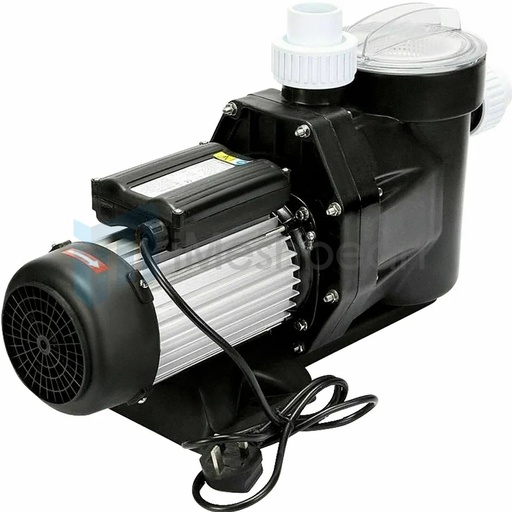

Hayward 2HP In/Above Ground Swimming Pool Sand Filter Pump Motor Strainer

Sale https://www.imeshbean.com/web/image/product.template/140/image_1920?unique=abc5ef7

152.59 152.59 USD 217.99


30% Off

Not Available For Sale


    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS Fast shipping 2-5 Days
    Product Image

    Hayward 2HP In/Above Ground Swimming Pool Sand Filter Pump Motor Strainer

    217.99 152.59
    30% Off


    • Power: 1500W/2HP
    • Voltage: 110V / 60Hz
    • Max. Flow: 480L/m
    • IP55 INS CL.F: Max. 50 C
    • Amps: 13.6A
    • Head:Max: 16.5/54FT
    • Capacitor: 25 F
    • Self Priming: 5
    • Inlet: 1.5'' Internal
    • Outlet: 1.5'' Internal
    • Pipe Compatibility: Fit 1.5-inch plumbing internally
    • Noise Level: <65dB
    • Weight: 22lbs
    • Power cord:1.5m/59inch


    • HIGH-QUALITY MATERIAL: The pump is constructed with longevity in mind and employs extensive use of corrosion-proof materials for durability.
    • 2HP ELECTRIC MOTOR: The swimming pool features a powerful super-efficient IP55 1500W 2HP Electric Motor. Suitable for pools up to 8000 liters.
    • STABLE PERFORMANCE: - Advanced S-Tek Flow System For Increased Efficiency With Continuous Flow Rate Of 560L/min. The fine filter basket ensures debris does not enter the pump, ensuring trouble-free operation and extended life of filter sand.
    • SAFETY PROTECTION: The self-priming automatic pump has a built-in thermal protector and provides automatic pressure protection. Long-life pump with quiet operation and no leak.
    • WIDE APPLICATION: The New SPPE swimming pool can keep you maintain a crystal clear and sparkling pool or SPA. It is an energy-efficient filtration pump for your swimming pool and sparkling pool.

    How to use

    1.  Locate the pump as close as possible to the pool.
    2. The pump suction line should not be smaller than the pressure line. All piping must be airtight
    3. The threads on the pump must be sealed with Teflon Tape or Silicon when the pump unions are screwed on.
    4. The weight of the piping should be supported independently and not carried by the pump.
    5. Fill the pump tank with water before starting.
    6. High suction lifts, or long suction lines, require additional time and reduce the performance of the pump
    7. The water being pumped cools and lubricates the seal
    8. After the pump tank has been filled with water, and the motor started, allow a few moments for the pump to start delivering water.

    Package included:

    • 1 x Pool PUMP
    • 2 x 1.5in NPT connectors
    • 1 x User manual
